Description
Manufacturer part #: 02-24.
2 Series Blocks are perfect for vangs, outhauls, backstays, cunninghams and other control blocks on a wide variety of boats. .
Schaefer’s 8 Series Stainless Blocks add strength and brilliance to your deck. Featuring Delrin™ sheaves, forged stainless steel D shackles, bolted construction for strength and Stainless Steel cheeks polished to a high luster add beauty and confidence to your boat.
| Features | American | Metric |
|---|---|---|

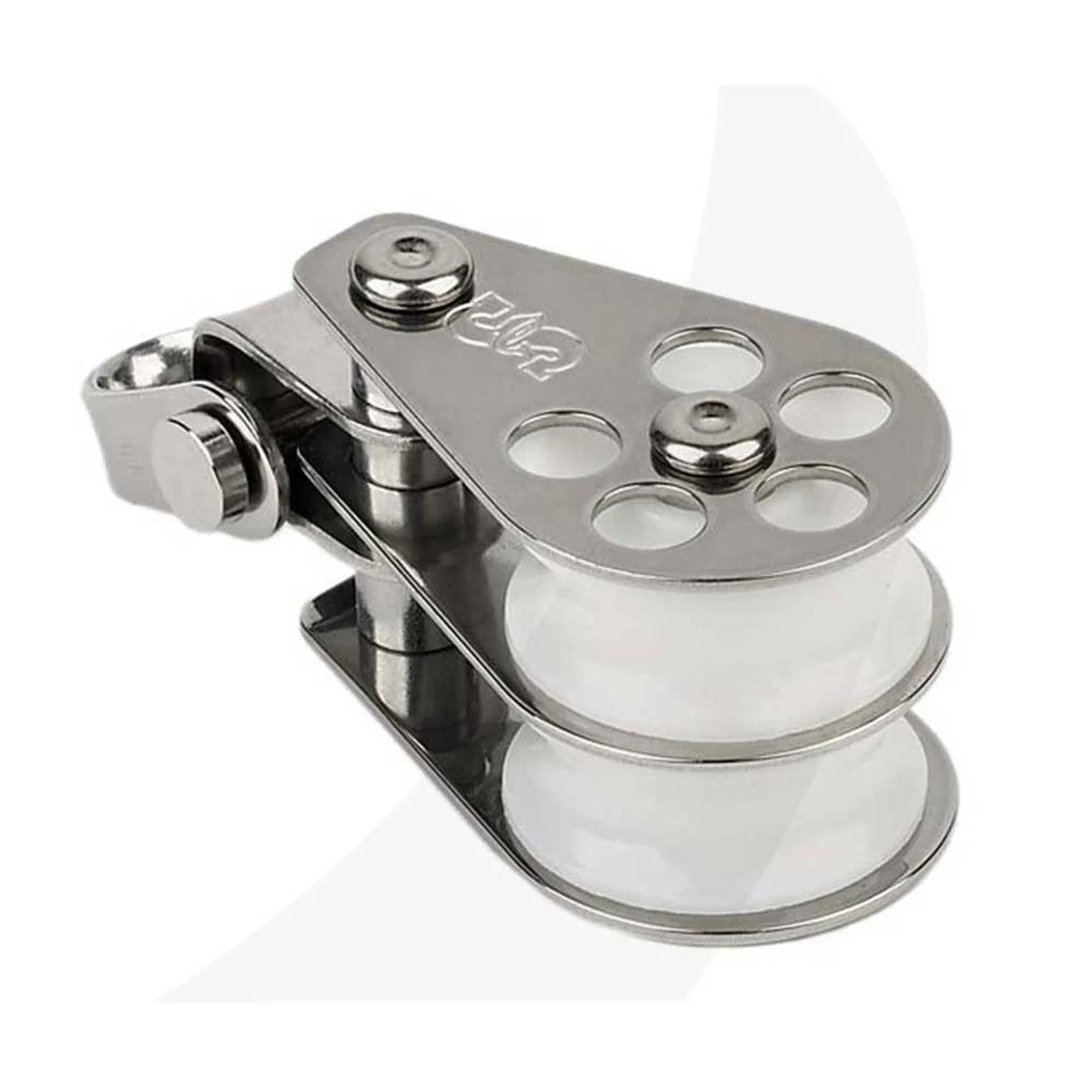

| Description | Double Block with Upset Shackle | |
| Lenght | 3 9 /32 in | 83 mm |
| Width | 1 3/16 in | 30 mm |
| Overall Thickness | 1 1/8 in | 28 mm |
| Sheave Ø | 1 1/16 in | 27 mm |
| Sheave Width | 3/8 in | 9 mm |
| Maximum Line Ø | 5/16 in | 8 mm |
| Pin Ø | 3/16 in | 5 mm |
| Safe Working Load Stainless | 900 lb | 410 kg |
| Safe Working Load Ball Bearing | 500 lb | 225 kg |
| Weight | 3 oz | 83 g |
Cheeks are constructed of tumbled and polished stainless steel for maximum resistance to corrosion and cracking common to other plastic designs. Sheaves are made of tough, high impact Delrin™, and turn on polished, stainless steel spacers that prevent the cheeks from binding the sheave even under heavy load.
