Description

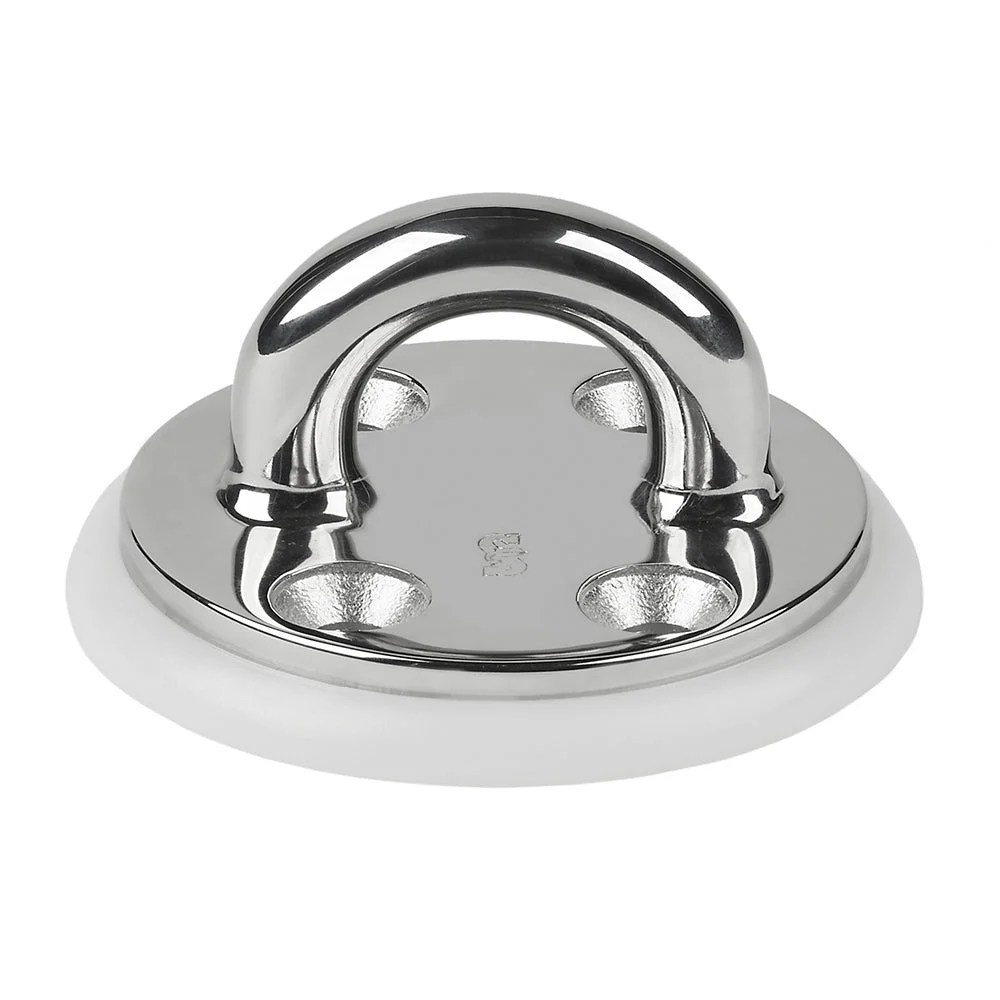

Investment Cast Pad Eye – 2-1/2″ OD Base

316 Stainless Steel includes delrin(tm) base. Order Backing Plate 97-53 separately.

Specifications:

• Eye Width 1″ (25 mm)
• Eye Height 13/16″ (21 mm)
• Eye Stock 3/8″ (10 mm)
• Length 2-1/2″ (64 mm)
• Width 2-1/2″ (64 mm)
• Fasteners (4), 1/4″ FH (6 mm)
• C/C A 1″ (25 mm)
• C/C B 1-1/2″ (38 mm)
• SWL 4000 lbs. (1800 kg)

All dimensions are center to center. Measure the rectangular pad eye as shown in the picture. The circular eye protection is the size from the inner hole to the inner hole, not the size of the middle span hole.
SKU: NVN-74763
MPN: 78-07
UPC: 740507007828
