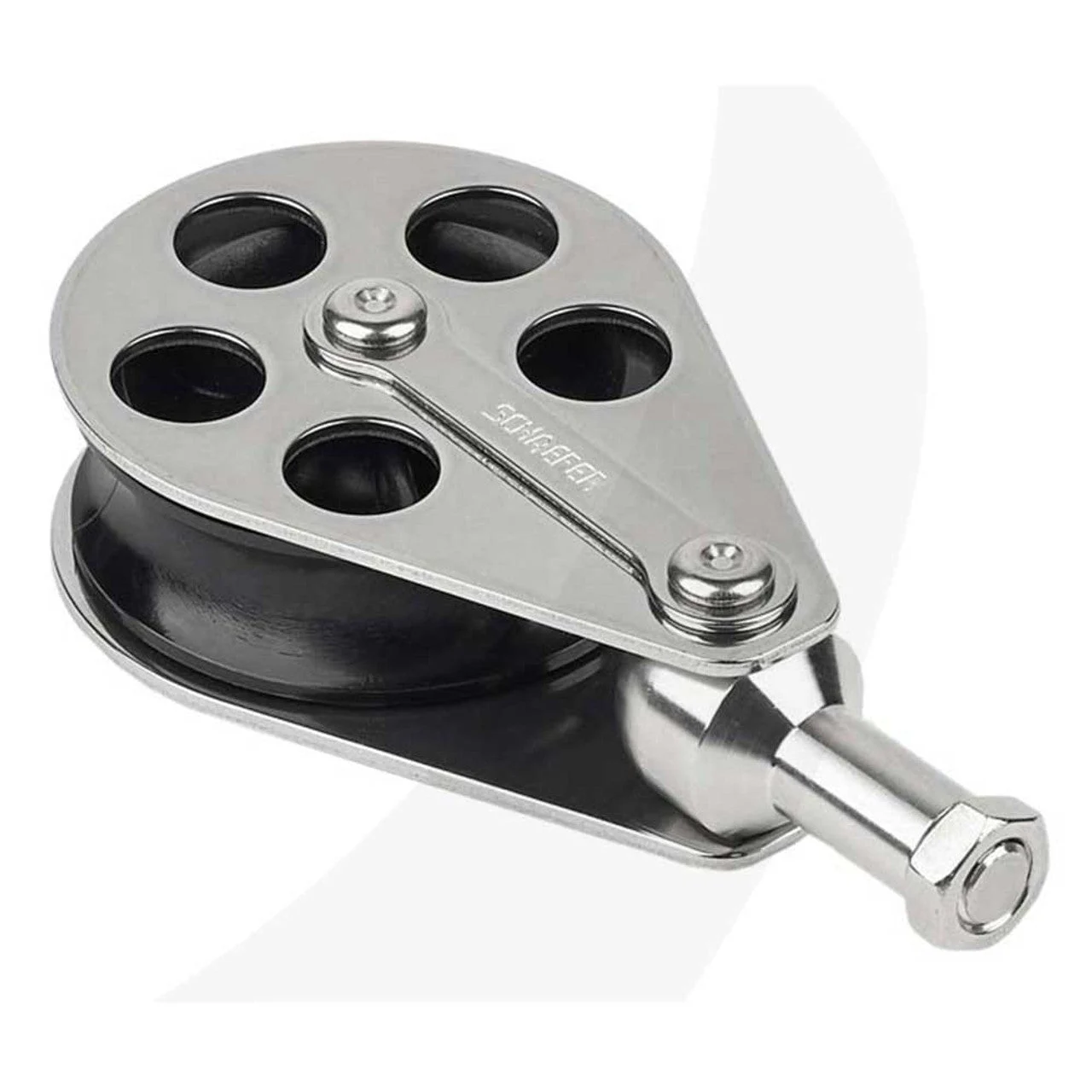

Description
Manufacturer part #: 705-20.
Schaefer offers several utility and Collar Post blocks to solve a variety of lead problems. Utility style blocks offer a removable Ferrule design for quick and strong attachment to a variety of fittings. The 505-20 and 705-20 include a collar post and the new M66-20 and M82-20 offer an easy attachment to existing mast collars. All of Schaefer’s utility blocks are ideal for high static loads created at the base of the mast.
| Features | American | Metric |
|---|---|---|
| Description | Isomat Mast Collar Block Delrin | |
| Lenght | 3 23/32 in | 94 mm |
| Width | 2 1/2 in | 64 mm |
| Overall Thickness | 1 in | 25 mm |
| Sheave Ø | 2 3/8 in | 60 mm |
| Max Line | 1/2 in | 13 mm |
| Jaw Opening | 13/16 in | 18 mm |
| Pin Ø | 0.510 Hole | |
| Safe Working Load | 2250 lb | 1020 kg |
| Weight | 3 oz | 539 g |
