Description
Manufacturer part #: 300-42.

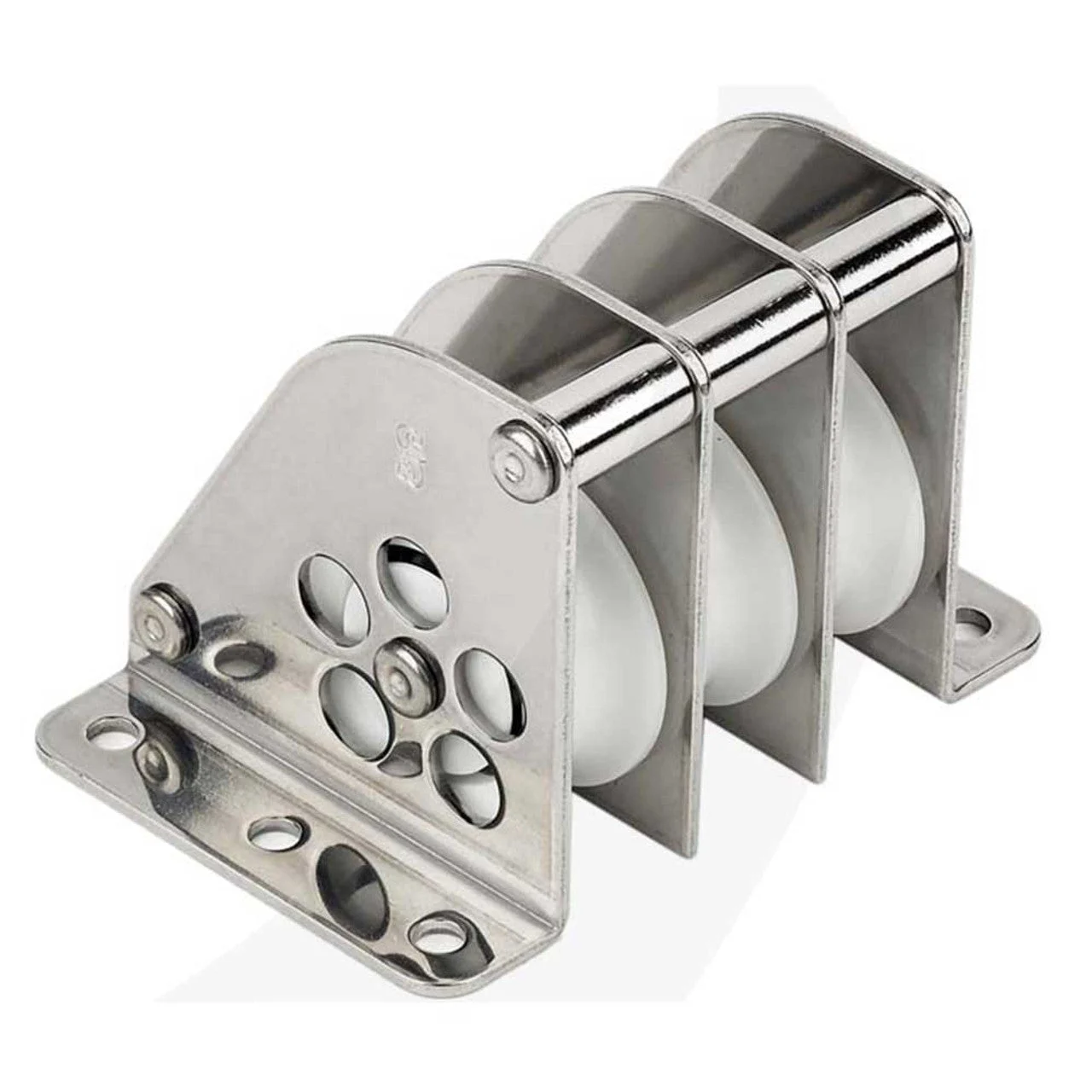

Designed to bring control lines over the forward edge of cabin houses, coamings or rails. Perfect for Raised Salon designs. Low Friction ball bearing sheaves lead lines easily.
| Features | American | Metric |
|---|---|---|
| Description | Over-The-Top Block Triple / Ball Bearing | |
| Length | 2 11/32 in | 60 mm |
| Width | 3 3/8 in | 86 mm |
| Height | 2 11/32 in | 36 mm |
| Bearing Height | 1 13/32 in | 36 mm |
| Sheave Ø | 1 7/16 in | 11 mm |
| Max Line | 7/16 in | 11 mm |
| Fastener (6) | 10 RH | 5 mm |
| C/C | 1 25/32 in | 45 mm |
| Safe Working Load | 650 lb | 295 kg |
| Weight | 10 oz | 328 g |
