Description

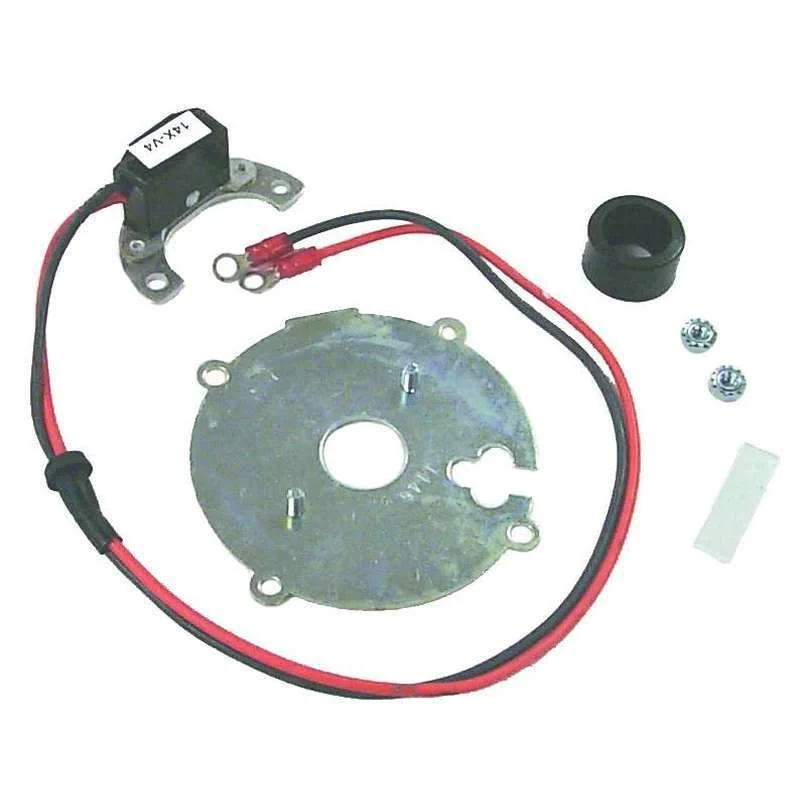

The Electronic Conversion Kit – Sierra Marine Engine Parts – 18-5297 (118-5297) is a solid-state ignition system that provides more power and higher timing accuracy. The secret lies in the trigger magnets, which rotate along with the rotor and activate a switching module without an external control box. These systems require only two wires to be connected during their quick 15-minute installation and are resistant to heat, oil, and dirt. Included are hardware, instructions, and a switching module.

Key Features:

• Timing is precise to 1/4° in the 0 to 6000 RPM range.
• Use with Ignition Coils 18-5466 and 18-5469.
• GLM 72510 and Mallory 9-26900 are interchangeable.
• To ensure a proper fit, check the part numbers against the fit.
• Two-wire, one-piece, and simple to install
• All Sierra products are equal to or better than the original equipment parts they replace.
• Enables pure solid-state ignition by replacing points and condensers.
• Uses a regular rotor, cap, and coil.

Specifications:

• SKU: 18-5297
• UPC: 030999754189
• Weight: 0.33 LBS
• Unit Of Measure: EA
• Manufacturer Part Number (MPN): 118-5297

Fits: 4cylinder GM, Replaces Points & condensers for true solid state ignition

This product replaces:

47-5297, GLM72510, 18-5297D, 92-72510, AP3091, 30999754189, 9-26900
