Description

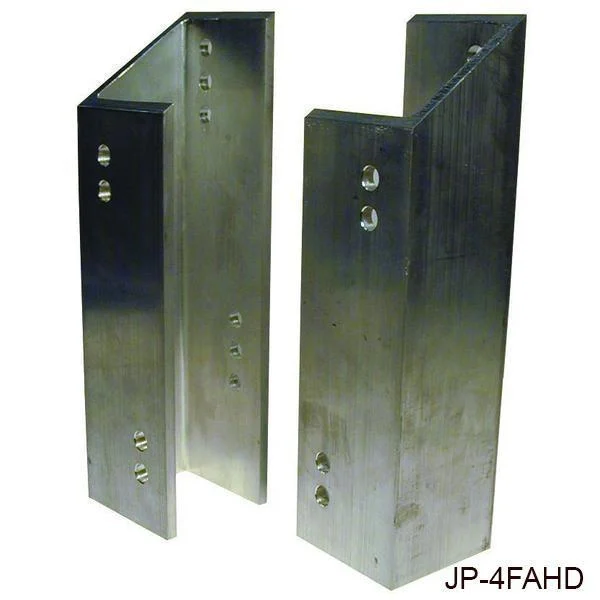

TH Marine Hi-Jacker™ Fixed Jack Plate 4 inch Heavy Duty

Model: JP-4FAHD-DP

• Inexpensive Short Transom Fix
• Solid Aluminum Extrusion
• 3-Engine Mount Holes — 2-Transom Holes
• Total Vertical of 5-1/2 Inches — 4″ Setback

This tough 1/2″ thick aluminum bracket provides an inexpensive solution to mounting a long shaft outboard to a short transom. Also great as a fixed jack plate for all V6 outboards. Handles all outboards up to 300 hp. Three engine mounting holes and two transom mounting holes combined with a 3″ designed lift allows a total of 5 1/2″ of lift with a full four (4) inches of setback.

” Solid 3/8″ Aluminum Extrusion 3-Engine Mount Holes- 2 Transom Holes Total Vertical of 5-1/2″- 4″ Setback This tough 3/8″ thick aluminum bracket provides an inexpensive solution to mounting a long shaft outboard to a short transom. Also great as a fixed jack plate for all V6 outboards. Handles all outboards up to 150 hp. Three engine mounting holes and two transom mounting holes combined with a 3″ designed lift allows a total of 5 1/2″ of lift with a full four (4) inches of setback.”
SKU: NVN-1001933
MPN: JP-4FAHD-DP
UPC: 733572081008
