Description

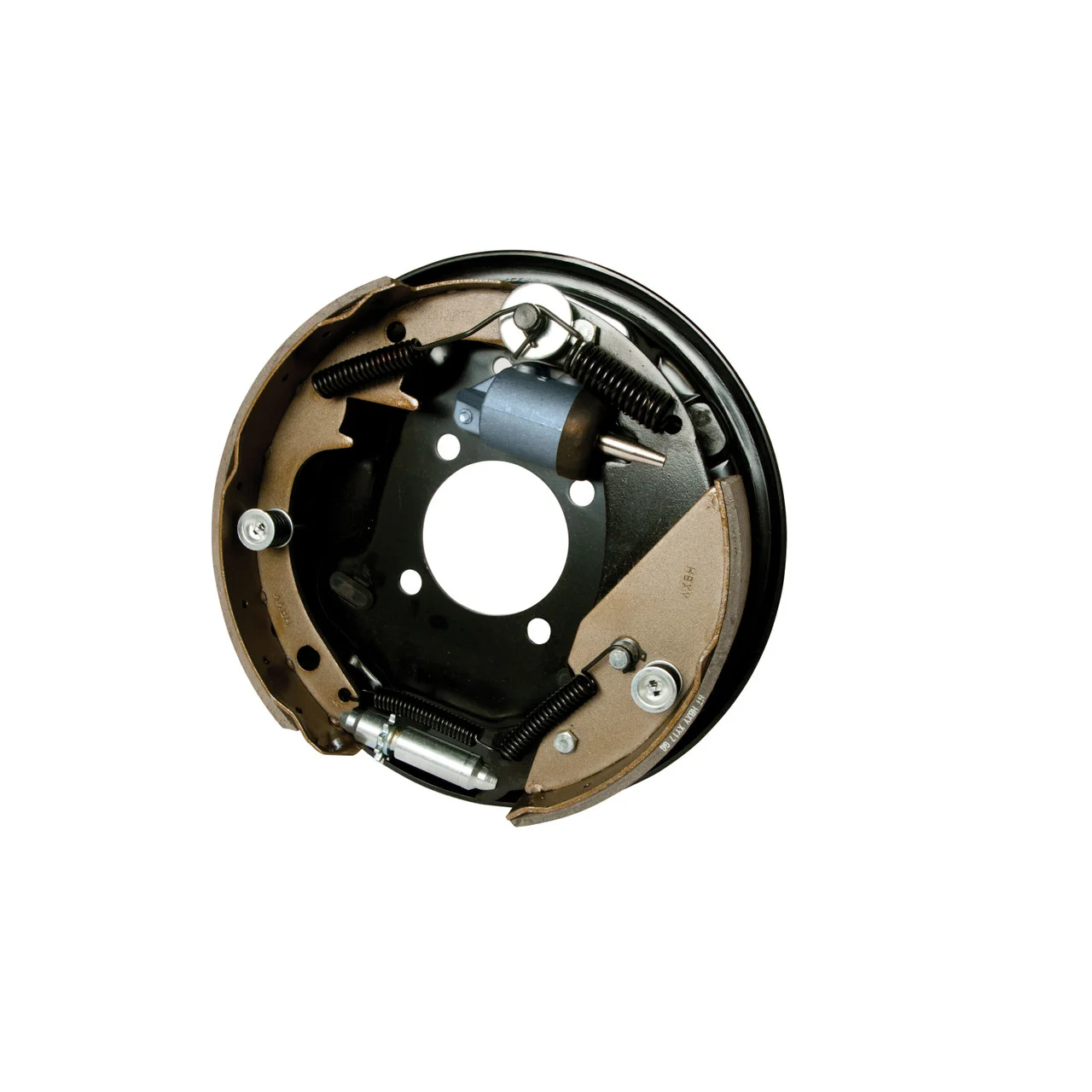

Hydraulic trailer drum brake assembly features a free-backing design that lets you reverse without activating your brakes. Designed specifically for surge actuators and has an axle rating up to 3,750 lbs. This right hand drum brake assembly may be used with hydraulic brake actuators that do not include reverse lockouts. It will fit most 13 in., 14 in. and 15 in. wheels. The required mounting flange bolt pattern is four on 4 in. and are sold separately.
Dimensions: 10 in. wide x 2-1/4 in. thick
Pad Lining: 44 sq. in.
Wheel Size: 13 in., 14 in. or 15 in.
Center Hole Diameter: 3 in.
Right-hand assembly, passenger’s side
