Description

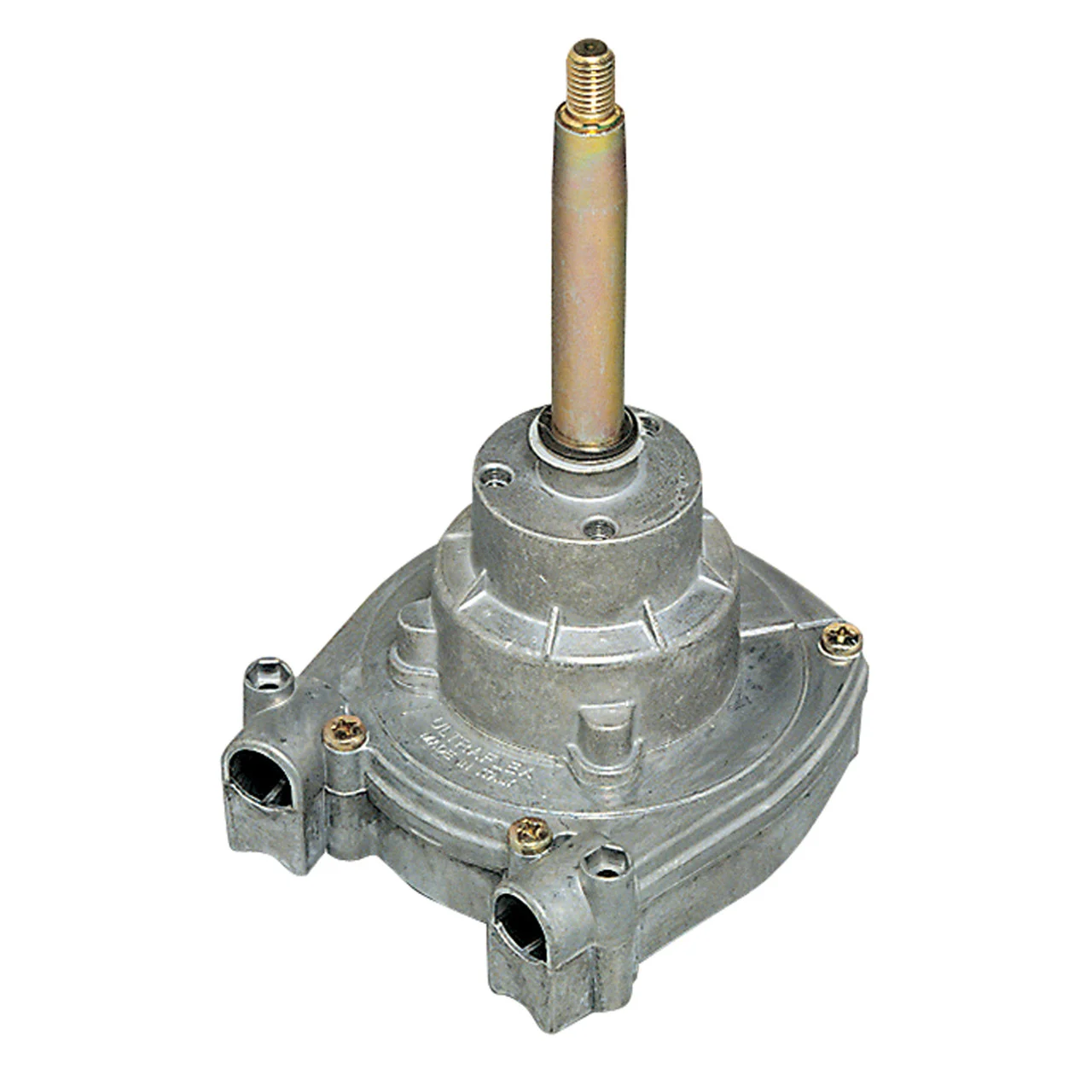

Easy and safe steering: a patented non-reversible mechanism eliminates the continuous load on the operator caused by the propeller torque. Compact rotary helm unit: the central location of the steering shaft makes these systems the most compact in their class. Maximum allowable steering wheel diameter: 16″ (402 mm) Minimum steering stable bend radius: 7.9″ (200 mm) Steering system is not the be used on boats equipped with engines that exceed the maximum horsepower rating of the boat.
Optional 90° or 20° installation
Standard 3/4″ tapered shaft
All stainless steel cable output ends
Made exclusively in corrosion resistant materials
Lock-to-lock steering wheel turns: approx. 3,8
