Description

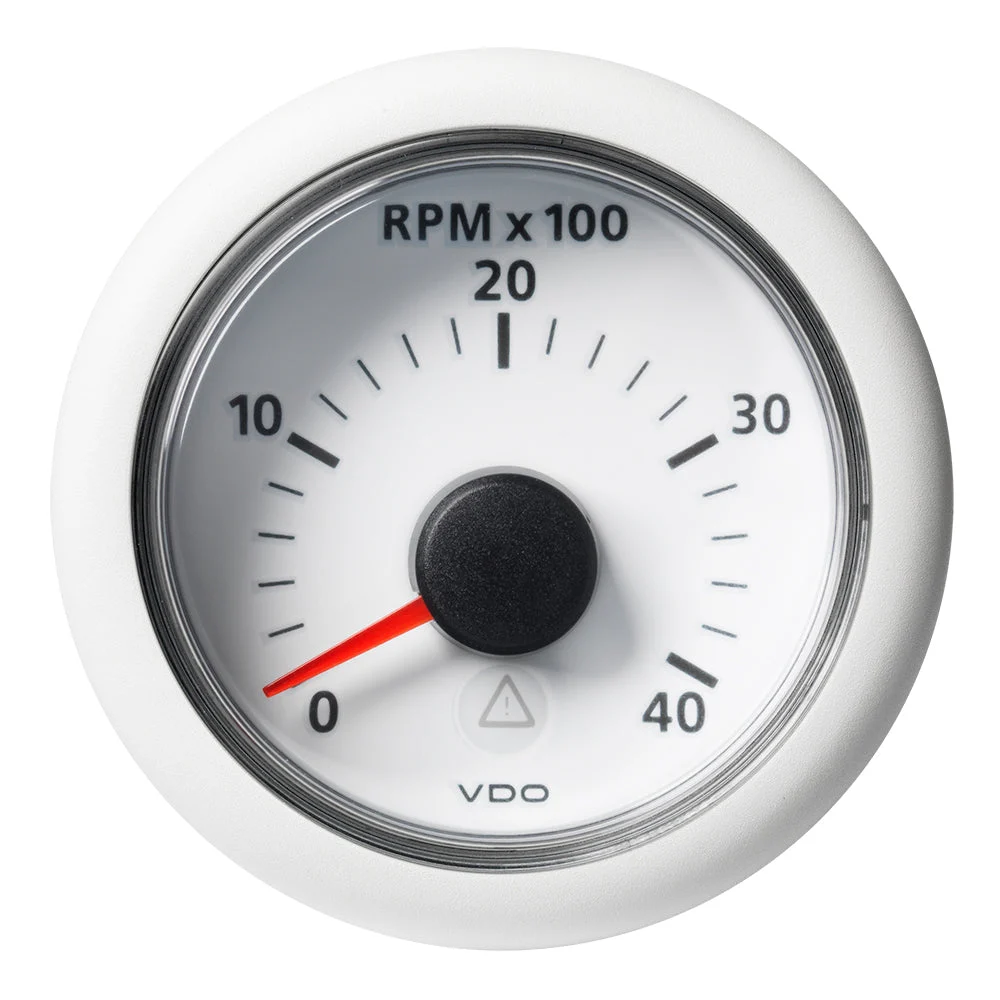

2-1/16″ (52MM) ViewLine Tachometer – 0 to 4000 RPM – 8 to 32V – White Dial & Bezel

ViewLine 52 mm Pressure Gauges are equipped with a red warning LED as a standard. The warning point depends on the chosen pressure sensor with warning contact or can be controlled by installing a make-point switch.

Antifog plastic double lens, maximum precision and stylish design.

Specifications:

•  8 pole Tyco / Hirschmann MQS plug
• +/- 3.6° angle degree accuracy over the entire display range
• Operating voltage 8 – 32 V
• Integrated warning alarm
• Input signal: standard Ω values
• Optional make-point switch can be connected
• Reverse polarity protection
• Front side protection rating IP67
• 52 mm installation diameter
• 50 mm installation depth

2-1/16 inch (52 mm) ViewLine tachometer-0 to 4000 RPM-8 to 32V-white dial and BezelViewLine 52 mm pressure gauge with red warning LED, as…
SKU: NVN-81558
MPN: A2C59512347
