Description

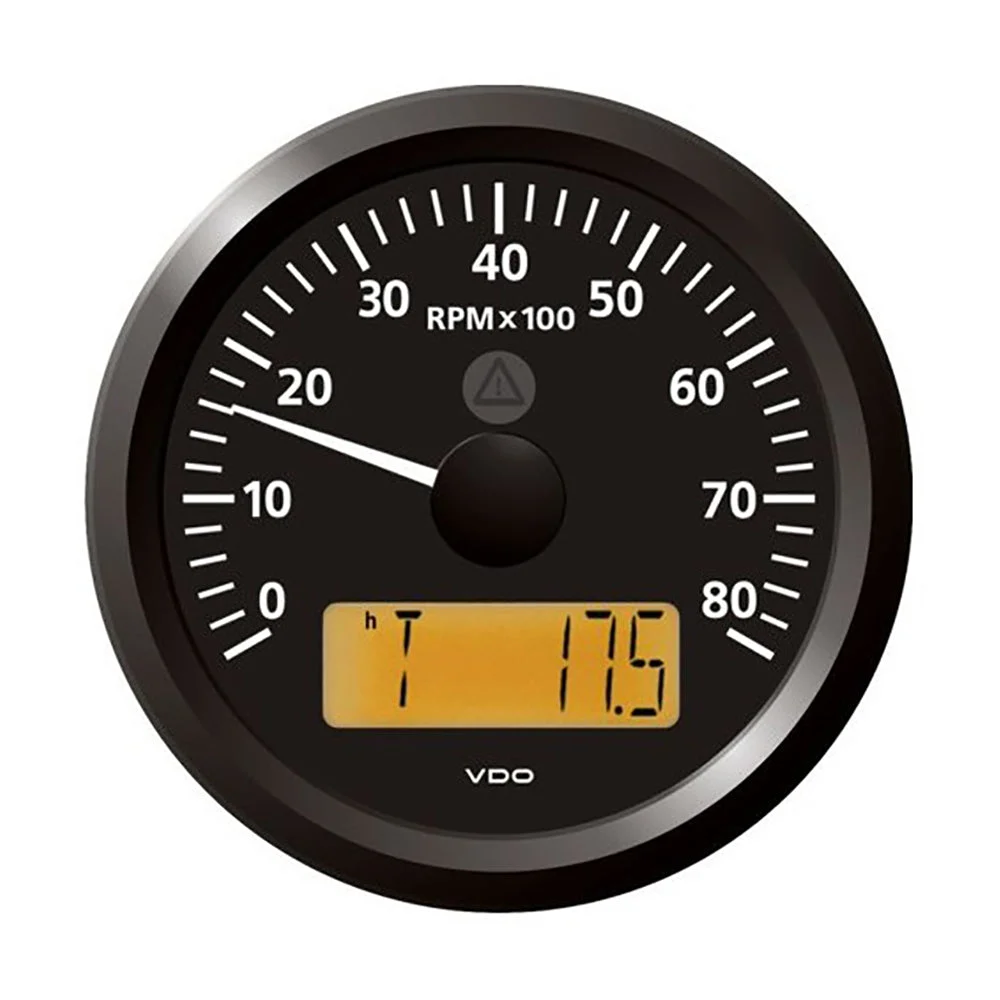

3-3/8″ (85 mm) ViewLine Tachometer – 0 to 8000 RPM – 8 to 32V – Black Dial & Triangle Bezel

The ViewLine Tachometer indicates the number of revolutions of the motor. Anti-fog plastic double lens, maximum precision and stylish design.

Our plug and play solution design concept offers a high level of installation flexibility.

Specifications:

• 8 and 14 pole Tyco / Hirschmann bush housing •
• Operating voltage 8 – 32 V
• Accuracy +/- 2.5 % of full scale reading
• 175 mA current consumption with an LED warning  light as standard
• Anti-fog double lens
• Protection rating front IP67, rear IP52
• 85 mm installation diameter
• 50 mm installation depth
• Operating temperature range -20 °C / +70 °C

3-3/8 inch (85 mm) ViewLine tachometer-0 to 8000 RPM-8 to 32V-Black dial and triangular bezel ViewLine tachometer indicates the number of revolutions of the motor. …
SKU: NVN-81562
MPN: A2C59512357
UPC:
