Description

The VDO Wind Gauges display wind speed and angle information received from the VDO AcquaLink NavBox or the NMEA 2000 data bus.

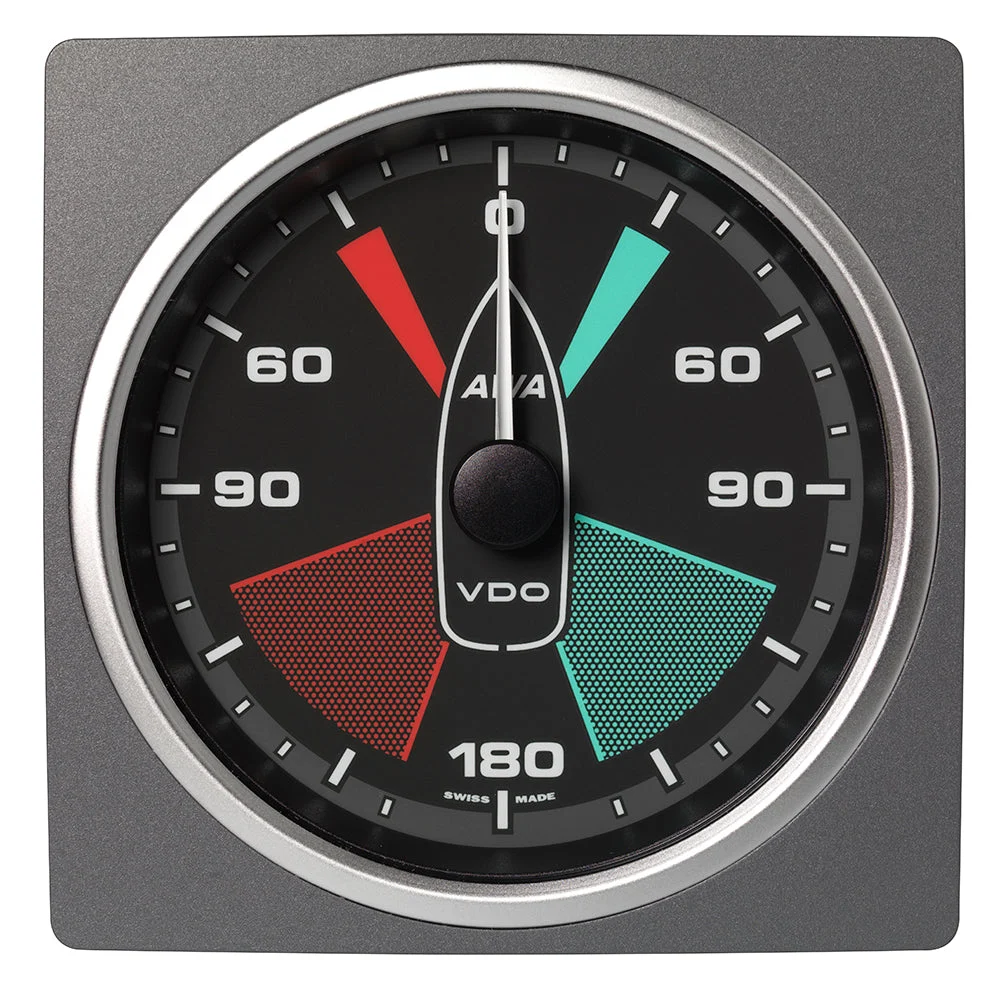

4-3/8″ (110mm) AcquaLink® Apparent Wind Angle 360° – 12/24V – Black Dial & Bezel

AcquaLink® 110 mm Gauges feature anti-fog coated mineral glass lenses and LED backlight technology. This allows superb readability in every situation. The gauges can be daisy-chained, using the unique VDO Marine Bus connection or connected to the NMEA 2000® network (optional adapter cable required). The available information provided by the AcquaLink® NavBox or the NMEA 2000® network is indicated by the pointer movement. The AcquaLink® Tachometer is a master up to 16 additional AcquaLink® 52 mm Gauges. These gauges can be connected using the patented EasyLink serial bus.

The VDO Marine Wind Gauges display wind speed and angle information received from the VDO Marine AcquaLink® NavBox or the NMEA 2000® data bus.

Specifications:

• 2x VDO Marine Bus connectors
• <150 mA
• Reverse polarity protection
• Anti-fog coated mineral glass lens
• Protection level IPX6
• Operating temperature range -20°C/+70°C

Aftermarket package:

• Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

4-3/8 inches (110mm) AcquaLink® Apparent Wind Angle 360°-12/24V-Black Dial and Bezel AcquaLink®110mm gauge uses anti-fog coated mineral glass lens and LED backlight technology.
SKU: NVN-82596
MPN: A2C59501900
UPC:
