Description

The VDO Wind Gauges display wind speed and angle information received from the VDO AcquaLink NavBox or the NMEA 2000 data bus.

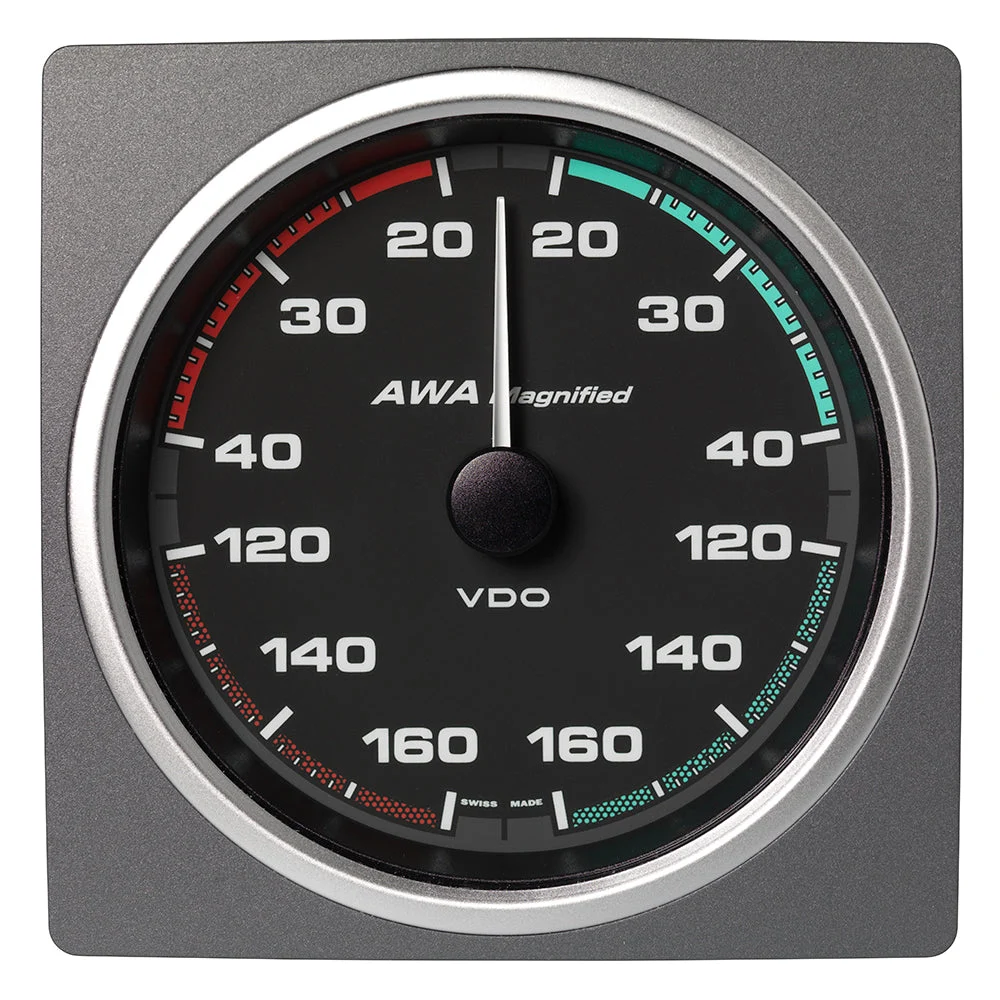

4-3/8″ (110mm) AcquaLink® Apparent Wind Angle Magnified 360° – 12/24V – Black Dial & Bezel

AcquaLink® 110 mm Gauges feature anti-fog coated mineral glass lenses and LED backlight technology. This allows superb readability in every situation. The gauges can be daisy-chained, using the unique VDO Marine Bus connection or connected to the NMEA 2000® network (optional adapter cable required). The available information provided by the AcquaLink® NavBox or the NMEA 2000® network is indicated by the pointer movement. The AcquaLink® Tachometer is a master up to 16 additional AcquaLink® 52 mm Gauges. These gauges can be connected using the patented EasyLink serial bus.

The VDO Marine Wind Gauges display wind speed and angle information received from the VDO Marine AcquaLink® NavBox or the NMEA 2000® data bus.

Specifications:

• 2x VDO Marine Bus connectors
• <150 mA
• Reverse polarity protection
• Anti-fog coated mineral glass lens
• Protection level IPX6
• Operating temperature range -20°C/+70°C

Aftermarket package:

• Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

We have won an excellent reputation for more than 30 years of experience in providing automotive replacement parts, fasteners and service line products mainly used in…
SKU: NVN-82597
MPN: A2C59501901
