Description

The VDO Tachometer displays RPM information received from the VDO AcquaLink NavBox or the NMEA 2000 data bus and distributes additional engine information to optional 52 mm AcquaLink EasyLink Gauges. With AcquaLink Tachometers you may monitor up to 4 boat engines via NMEA 2000 or J1939. Easily assign the dedicated engine to the chosen gauge by using VDO Configuration tool or by connected TFT Display.

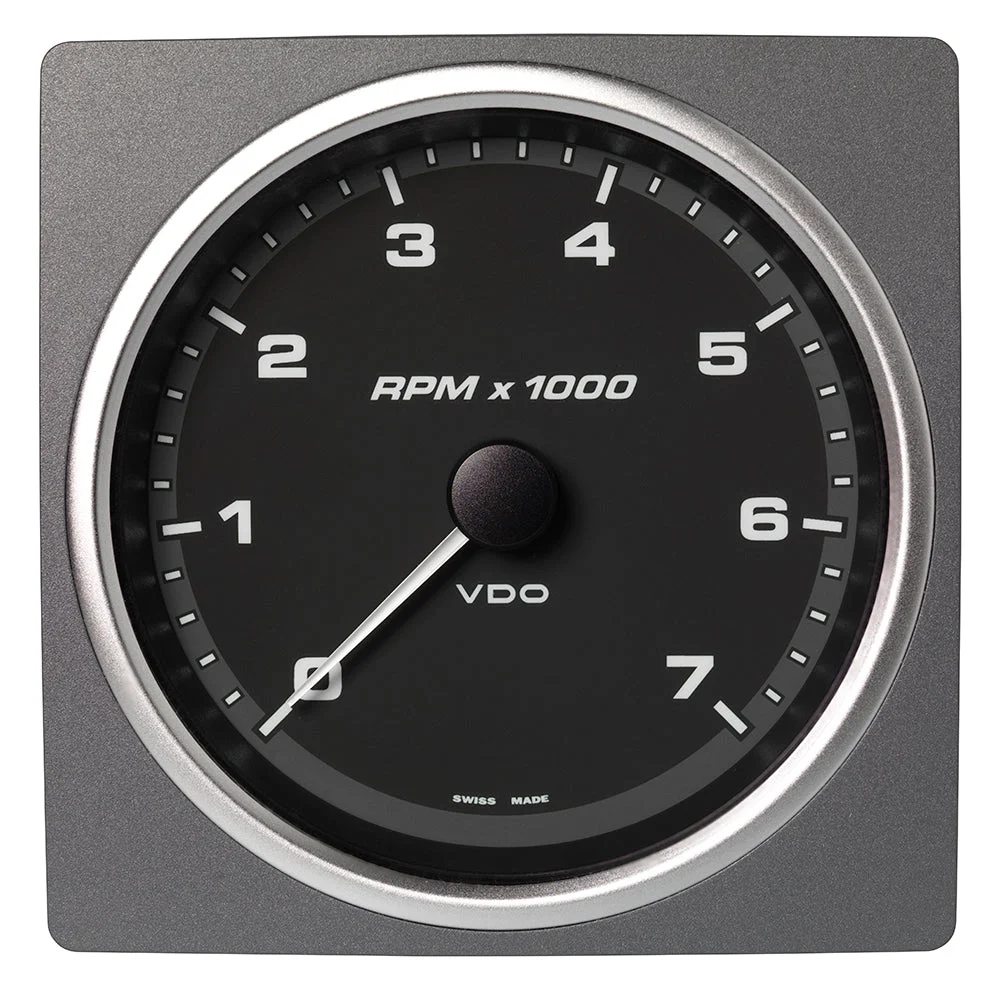

4-3/8″ (110mm) AcquaLink® Tachometer 7000 RPM – 12/24V – Black Dial & Bezel

The VDO Marine Tachometer displays RPM information received from the VDO Marine AcquaLink® NavBox or the NMEA 2000® data bus and distributes additional engine information to optional 52 mm AcquaLink® EasyLink Gauges. With AcquaLink® Tachometers you may monitor up to 4 boat engines via NMEA 2000® or J1939. Easily assign the dedicated engine to the chosen gauge by using VDO Marine Configuration tool or by connected TFT Display.

“OceanLink 7″ NMEA 2000 Certified TFT Gateway – Black OceanLink 7″ NMEA 2000 Certified TFT Gateway converts both analog and J1939 data into NMEA 2000 data. The display features a daylight readable 24bit optically bonded transmissive screen, 40 different customizable screens and support for up to 20 individual satellite gauges. OceanLink Technical Information: 1x NMEA 2000 connector 1x J1939 and 4x analogue input 6x 0-400 ohm analog inputs 2x frequency inputs 3x 0-5V inputs 2x 4-20mA inputs 2x RGB video inputs Operating temperature range -25 u00b0C / +70 u00b0C Optical bonded mineral glass lens Front & rear side protection rating IPX9 Touch screen swipe technology .”
SKU: NVN-82595
MPN: A2C59501915
UPC:
