Description

AcquaLink 52 mm Pressure Gauges are connected directlyto any AcquaLink 110 mm Tachometer using the patented EasyLink serial bus connection. Up to 16 EasyLink gauges for each Tachometer can be daisy-chained together. Giving the customer the possibility to customize the cockpit, AcquaLink 52 mm Gauges have not included bezel in the packaging.

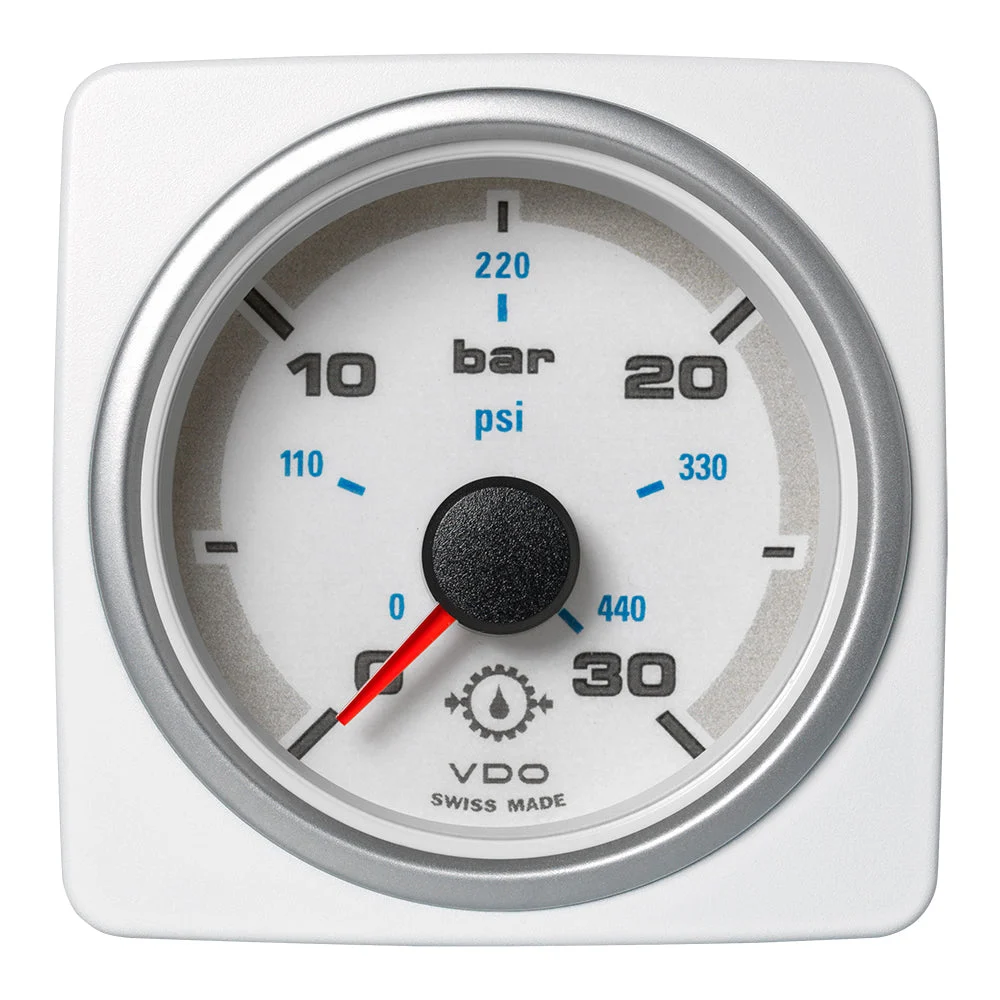

52 MM (2-1/16″) AcquaLink Transmission Oil Pressure 30 Bar/440 PSI – White Dial & Bezel

AcquaLink realizes state-of-the-art solutions to provide customers with instantaneous and accurate nautical information.  The instruments are designed for performance, with ease of use remaining an important attribute. The use of premium material – such as mineral glass lenses – guarantees the highest level of reliability and readability, as well as low energy consumption.

Features:

• Maximum precision and the deployment of pioneering technologies are equally important as ease of use and stylish design.
• AcquaLink components are made of high class materials, like mineral glass, stainless steel and aluminum.
• All products are manufactured below ISO 9001 certified environment.
• Our plug and play solution design concept offers a high level of installation flexibility.
• A cross-platform standard offers maximum freedom in respect of cockpit customization.
• We ensure seamless integration and optimum utilization of AcquaLink devices for extreme conditions at sea.
• Harmonized dashboard look.

Technical Specifications:

• Operating Range – +0 to 30 Bar/+0 to 440 PSI
• Input Signal –  EasyLink
• Nominal Voltage -12 / 24 V
• Color – White/Aluminum
• Installation Diameter – 52 mm (2-1/16″)
• Installation Depth – 50 mm
• Lens – Mineral Glass – Anti-fog
• IP Class – IPX6
• Connector Type – AMP Superseal IP65 3-Pole

In the Box:

• Gauge
• Install/Safety Manual

*Sold as an Individual

52 mm (2-1/16 inches) AcquaLink gearbox oil pressure 30 Bar / 440 PSI-white dial and bezel AcquaLink realizes the most advanced solution, which can provide customers with instant and accurate navigation information.
SKU: NVN-82552
MPN: A2C1338690001
