Description

OceanLink 52 mm Pressure Gauges are connected directly to any OceanLink Master unit using the patented EasyLink serial bus connection. Gauges have anti-fog plastic double lens and choice of three various bezels.

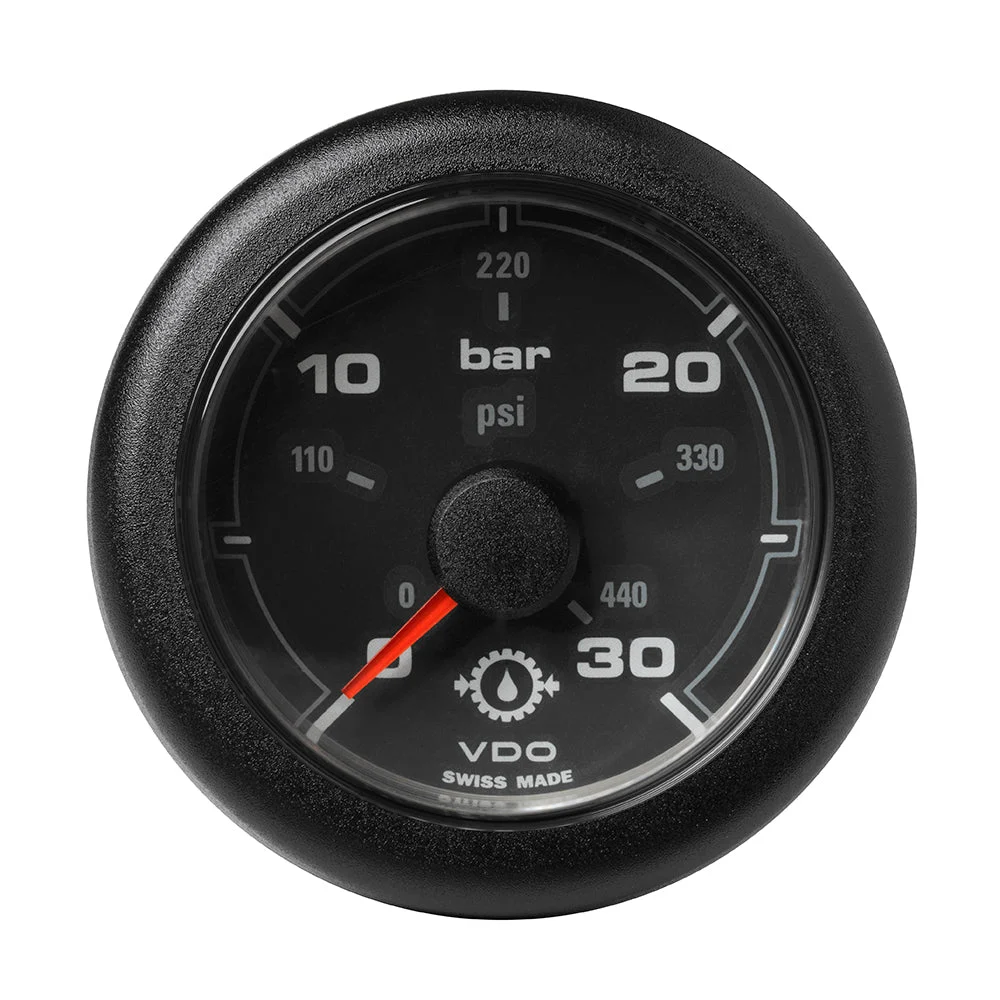

52MM (2-1/16″) OceanLink Transmission Oil Pressure Gauge – 30 Bar/440 PSI – Black Dial & Bezel

OceanLink 52 mm Vessel Status Gauges are connected directly to any OceanLink Master unit using the patented EasyLink serial bus connection.  Up to 16 EasyLink gauges for each Tachometer or GPS Speedometer can be daisy-chained together.

Interchangeable bezel option.

Features:

• AMP Superseal Easylink
• 270° pointer deflection angle
• Reverse polarity protection
• Anti-fog double lens
• Front & rear protection rating IPX5
• Operating temperature range -20 °C / +70 °C
• Nominal voltage – 12/24V
• Hole diameter – 52MM

In the Box:

• Gauge
• Bezel
• Rubber Seal
• Spinlock
• Installation Instructions
• Safety Instructions

*Sold as an Individual
