Description

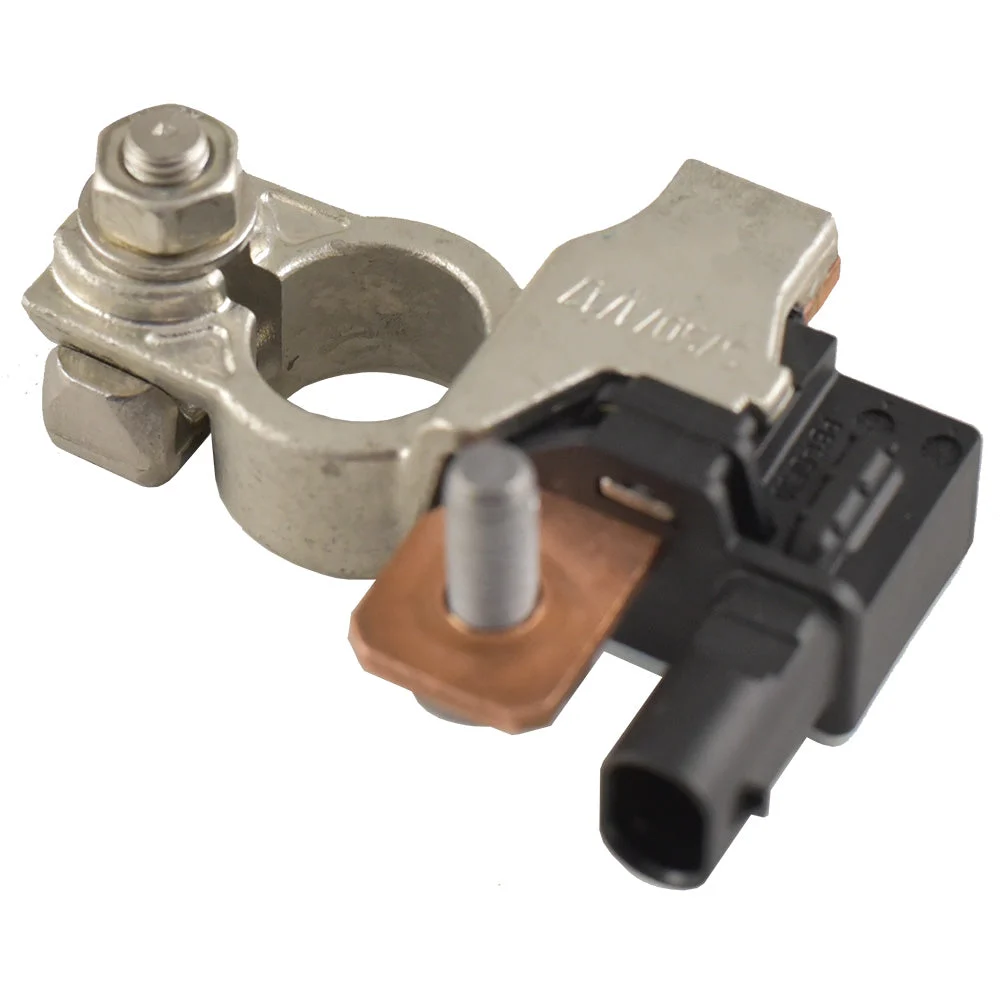

Intelligent Battery Sensor 12V – 500A

After the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current, and temperature parameters and internally calculates the State Of Charge, State Of Health, and Time Remaining accordingly.

Technical Specifications:

• Operating Voltage – 6-16.5V
• Operating Current (Permanent) –  ± 155A
• Max Current – ± 1500A (500 ms)
• Power Consumption – ≤ 15 mA (normal mode), ≤ 120 μA (sleep mode)
• Max Battery Capacity – 249 Ah
• Operating Temperature – -40°C to 155°C

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
SKU: NVN-92737
MPN: B00084201
UPC:
