Description

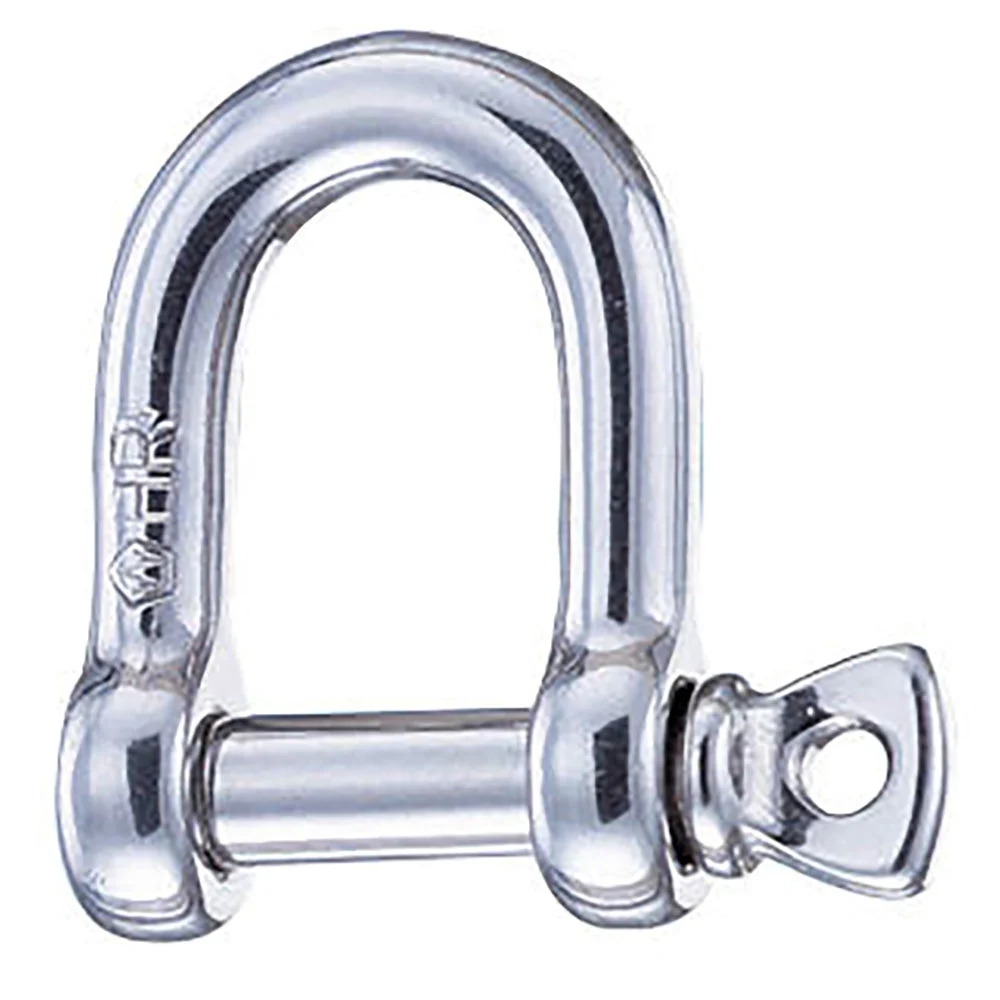

HR D Shackle – 16mm Diameter – 5/8″

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head …
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 14990 / (kg) 6800
• WLL: (lb) 8370 / (kg) 3800
• Breaking load: (lb) 41880 / (kg) 19000
• Weight: (lb) 1.023 / (g) 464

Dimensions:

• A: (inch) 2 13/64″ / (mm) 56
• B: (inch) 1 17/64″ / (mm) 32
• D diameter: (inch) 5/8″ / (mm) 16

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

SKU: NVN-97707
MPN: 11208
